91700000 - Petrol - Compression Pressure Tester / Meter - SPCS-17,5 SK - with measurement and connection to the quick coupler
Availability: Na zamówienie - 48h
Shipping time: 48 hours
The cost of shipping: from 0.00 zł
Number: 917 000 00
Product status: New
Warranty: Gwarancja na 12 miesięcy
- Product description
- Product reviews (0)

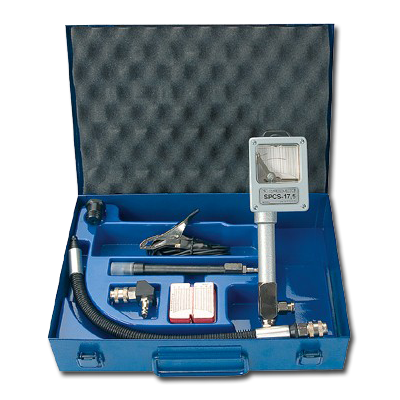

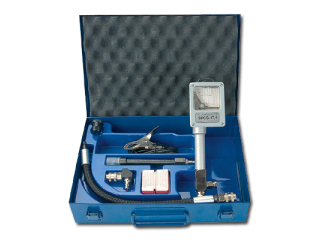

For simplicity of use with quick coupler connections.
The instrument enables one-man operation of measurement when using the probe by incorporating a starter switch handle.
In this model, the threaded test connector is replaced with quick connectors, which greatly accelerates and facilitates the measurement.
The meter is equipped with a basic set of measuring tips (adapters), which can be used in a wide range of gasoline engines.
We offer a wide assortment of different types of adapters that can be purchased separately or in sets.
Measurement results are recorded in the diagram in which the meter is equipped.
On one diagram you can save 8 results of compression pressure measurements in gasoline engine cylinders.
In our offer we have suitable diagrams packed after 100 sz. - Article 617 105 00
Measuring range: 0.3 - 1.75 MPa (3 - 17.5 bar).
Equipment:
- A compression measuring instrument with a handle fitted with a starter switch
- Pressure hose of 360 mm
- Adapter SK 160 mm - M14 x 1.25
- Measurement reduction M18 x 1.5
- Angle connector SK 90 degrees
- Electric wires for starting the engine
- Diagrams registration 100 pieces
Weight: 2,80kg
The instrument enables one-man operation of measurement when using the probe by incorporating a starter switch handle.
In this model, the threaded test connector is replaced with quick connectors, which greatly accelerates and facilitates the measurement.
The meter is equipped with a basic set of measuring tips (adapters), which can be used in a wide range of gasoline engines.
We offer a wide assortment of different types of adapters that can be purchased separately or in sets.
Measurement results are recorded in the diagram in which the meter is equipped.
On one diagram you can save 8 results of compression pressure measurements in gasoline engine cylinders.
In our offer we have suitable diagrams packed after 100 sz. - Article 617 105 00
Measuring range: 0.3 - 1.75 MPa (3 - 17.5 bar).
Equipment:
- A compression measuring instrument with a handle fitted with a starter switch
- Pressure hose of 360 mm
- Adapter SK 160 mm - M14 x 1.25
- Measurement reduction M18 x 1.5
- Angle connector SK 90 degrees
- Electric wires for starting the engine
- Diagrams registration 100 pieces
Weight: 2,80kg
