M410 - Prague to make the brake 4,75 / 5 / 6 / 8 / 10 mm, 1/4" 1/2"
Availability: Dostępny - 24h
Shipping time: 24 hours
The cost of shipping: from 0.00 zł
Number: C.410
EAN code: 4037374004101
Product status: New
Warranty: Gwarancja na 12 miesięcy
Weight: 1,22 kg
- Product description
- Product reviews (0)

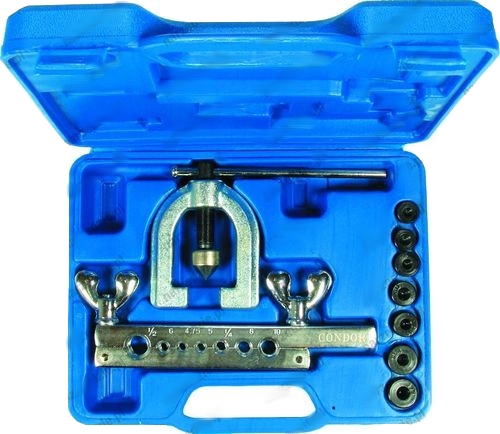

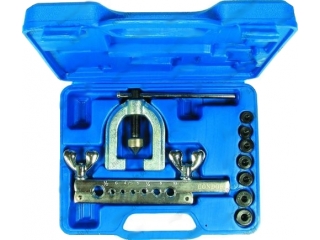

Package Contents:
- plastic suitcase
- Praska to earn ends
- Handle for brake hoses
- metric clamps: 4.75 / 5 / 6 / 8 / 10 mm
- inch squeeze: 1/4" ; 1/2"
- Press to make ends:
ordinary
Bent at an angle of 90 °
Open - type F
Double - type E
AVAILABLE SINGLE ELEMENTS OF THE KIT
User manual:
Gripping of wires should be carried out by qualified personnel in a specialized facility. It is unacceptable to use the device by children. The person using the instrument should be sober. Trained in Health and Safety at work, and to perform actions with sensitivity and care.
Warning !!! There is a risk of injury to the sharp edges of the cord or pinching the palms of the fingers.
1. The end of the wire must be cut at right angles and cleaned from sharp edges.
2. Place the wire in the hole in the handle and slide out the wire to the required length.
3. Firmly tighten the cord in the handle with the butterfly nuts.
4. Insert the adapter pin into the center of the cable.
5. Place the stopper over the adapter and tighten the stop until the adapter contacts the adapter.
6. Remove the adapter - the cable end should be conical.
7. Screw the end of the rope until the cord is open.
8. Remove the cord from the bracket.
9. Do not drink a successful operation - drinking alcohol at work is prohibited by Bhp regulations, it is unhealthy and unhappy.
